The tile cutter is an indispensable tool for both professional craftsmen and DIY enthusiasts working with tiles. It allows you to cut tiles precisely so that they fit perfectly around corners, pipes, and edges. Whether you are laying tiles in the bathroom, kitchen, or on the terrace, the right tile cutter can save time and ensure a beautiful final result.
In this article, you will get an overview of how tile cutters work in practice, what types exist, and what you should consider before choosing a model.
The article presents a wide range of tile cutters that cover different needs – from manual models to electric machines. The purpose is to provide an overview of features, areas of use, and price ranges so that you can more easily find the type that suits your projects. The product information is based on publicly available descriptions from manufacturers and retailers and is summarised to provide a clear and informative overview.
Factors to consider when buying a tile cutter
When choosing a tile cutter, it is important to consider both the material you will be working with and how often the tool will be used. Here are some of the most important factors to consider.
1. Tile type and material hardness
Ceramic tiles, porcelain tiles, and natural stone require different types of cutting tools. A manual tile cutter can often handle ceramic tiles, while harder materials such as porcelain and granite require an electric wet cutter with a diamond blade.
2. Cutting length and capacity
Choose a tile cutter that can handle the sizes you are working with. For large floor tiles, a model with a longer cutting length is required, while smaller wall tiles can be handled with a compact version.
3. Precision and stability
A solid stand and a stable rail ensure precise cuts. Many models have adjustable angles, allowing you to make bevel or diagonal cuts – an advantage for advanced tile installations.
4. Ease of use and ergonomics
Ergonomic handles, easily adjustable parts, and low weight make the work easier, especially for longer projects. If you work frequently with tiles, a model with slide bearings and shock absorption can reduce strain on hands and arms.
5. Maintenance and lifespan
A tile cutter requires minimal maintenance, but cleaning after use and proper storage extend its lifespan. For electric models, you should also keep an eye on the condition of the blade and replace it when it becomes worn.
Products in focus

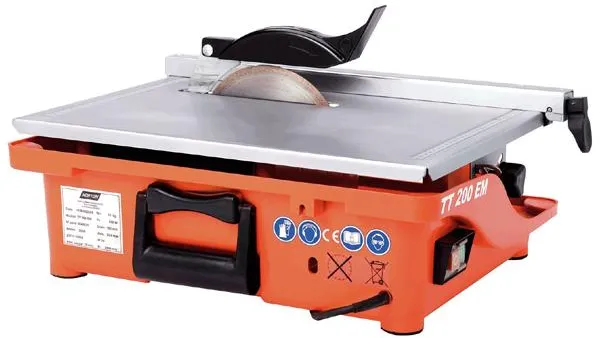

The Norton Clipper TT 200 EM is a table saw designed for cutting tiles, ceramics, and smaller stone materials. The machine comes with a 200 mm diamond cutting blade and is built to deliver clean and precise cuts in hard materials.
The 800-watt motor provides stable power during operation, and the stepless mitre angle from 0 to 45 degrees allows for bevel cuts with high accuracy. The cutting depth is 45 mm at 90° and 14 mm at 45°, covering most common tile tasks.
The table measures 420 × 400 mm and provides a stable working surface, while the machine’s weight of 16.5 kg makes it easy to transport. It comes in a practical storage box along with the blade (model 12080-0404).
With an IP54 protection rating, the TT 200 EM is protected against dust and water splashes, making it suitable for use in workshops and on construction sites. The maximum blade diameter is 200 mm with a bore diameter of 25.4 mm, and the motor runs at 2990 revolutions per minute.
- Efficient motor: 800 W motor ensures stable cutting power for tiles and ceramics.
- Stepless mitre angle: Adjustable from 0° to 45° for precise bevel cuts.
- Compact and portable: Supplied in a storage box and weighs only 16.5 kg.
- Robust worktable: Table size of 420 × 400 mm provides good stability.
- Protected construction: IP54 rating against dust and water splashes.
Pros and cons
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Pros and cons
Pros
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
Cons
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Pros
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
Cons
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Specifications
- Model: TT 200 EM
- Power: 800 W
- Motor voltage: 230 V
- Speed: 2990 rpm
- Blade diameter (max): 200 mm
- Blade bore diameter: 25.4 mm
- Cutting depth at 90°: 45 mm
- Cutting depth at 45°: 14 mm
- Table length: 420 mm
- Table width: 400 mm
- Protection class: IP54
- Weight: 16.5 kg
- ETIM classification code: EC002244
- Included blade: 12080-0404
The Tile Cutter Machine Class 900S is designed for efficient and accurate cutting of tiles, ceramics, and other hard building materials. It is equipped with a powerful 1,000-watt motor powered by 230 volts and comes with a 200 mm diamond blade that ensures clean and precise cuts.
The machine has a maximum cutting length of up to 90 cm and a cutting depth of 4 cm, making it suitable for both large and small tiles. An integrated laser guide helps achieve precise cuts, while a smart spray system provides water cooling for the blade during operation.
The cutting head moves smoothly on ball bearings, providing even and controlled movement. The cutting angle can be adjusted from 0 to 45 degrees, and the cutting depth can be changed without tools, making the machine flexible to use.
The Class 900S is built to deliver stable results and high precision, whether used for professional tasks or larger home renovation projects.
- Cutting length up to 90 cm: Allows handling of large tiles and slabs.
- Cutting depth of 4 cm: Suitable for both thin and thicker materials.
- Laser guide: Helps with precise positioning and straight cuts.
- Water cooling: Smart spray system reduces heat build-up and dust.
- Adjustable cutting angle: From 0° to 45° without tools.
- Powerful motor: 1,000-watt motor with 230-volt power supply.
Pros and cons
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Pros and cons
Pros
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
Cons
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Pros
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
Cons
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Specifications
- Model: Class 900S
- Motor power: 1,000 watts
- Voltage: 230 volts
- Blade diameter: 200 mm diamond blade
- Maximum cutting length: 90 cm
- Maximum cutting depth: 4 cm
- Cutting angle: 0–45° adjustable
- Cooling system: Water cooling via spray system
- Item number (SKU): 159302-159304

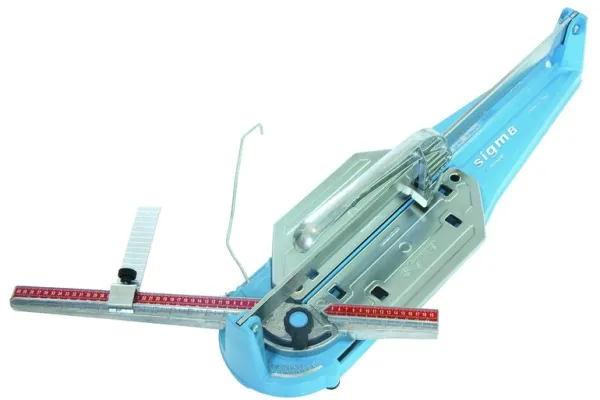

The Sigma Tile Cutter 2D4 is developed for the professional tiler who needs precise and repeatable cuts. The cutting is performed by pushing the handle forward, providing a controlled movement and a clean break in the tile.
The breaking mechanism is equipped with plastic protection, which reduces the risk of marks on the tile surface. The patented cutting guide can be adjusted from 0 to 45 degrees on both sides, making it possible to perform both straight and angled cuts with high accuracy.
With a cutting height of up to 20 mm and a maximum cutting length of 61 cm, the tool can handle most standard tiles. The diagonal capacity of 43 × 43 cm makes it suitable for diagonal tile installations where precision is crucial.
- Cutting length 61 cm: Allows cutting larger tiles in one pass.
- Adjustable cutting guide: Can be angled from 0–45° on both sides for flexible cutting.
- Breaking mechanism with plastic protection: Protects the tile surface from marks.
- Cutting height up to 20 mm: Suitable for both thin and thicker tiles.
- Diagonal capacity 43×43 cm: Enables precise diagonal cuts.
Pros and cons
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Pros and cons
Pros
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
Cons
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Pros
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
Cons
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Specifications
- Manufacturer: Sigma
- Model: 2D4
- Cutting length: 61 cm
- Cutting height: 20 mm
- Diagonal capacity: 43 × 43 cm
- Angle range: 0–45° on both sides
- SKU: SV-163129

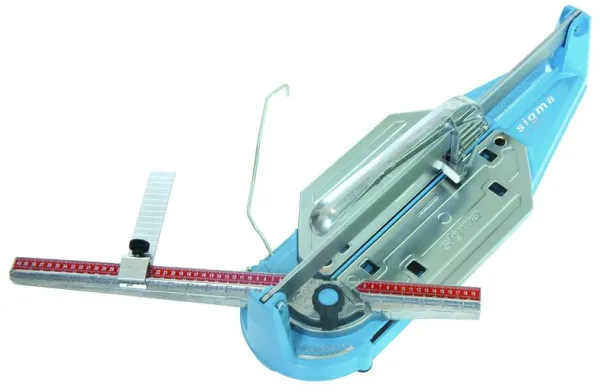

The SIGMA Tile Cutter 2C4 is a manual tile cutter designed to deliver precise cuts in ceramic tiles. It has a maximum cutting length of 46 cm, making it suitable for both small and medium-sized tiles.
The model is equipped with a push handle, which gives the user good control during cutting and ensures a clean break. The construction is typically made of solid materials that can withstand repeated use on construction sites and in workshops.
The tile cutter is designed to provide a combination of accuracy and ease of use, making it suitable for both professional tilers and private individuals who want a precise result for renovation tasks.
- Push handle: Provides controlled and precise cutting of tiles.
- Cutting length of 46 cm: Fits most standard tiles.
- Solid construction: Built for professional use and long durability.
- Manual operation: Requires no power and can be used anywhere.
Pros and cons
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Pros and cons
Pros
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
Cons
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Pros
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
Cons
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Specifications
- Manufacturer: SIGMA
- Model: 2C4
- Cutting length: 46 cm
- Operation type: Push handle
- Item number (SKU): SV-163128

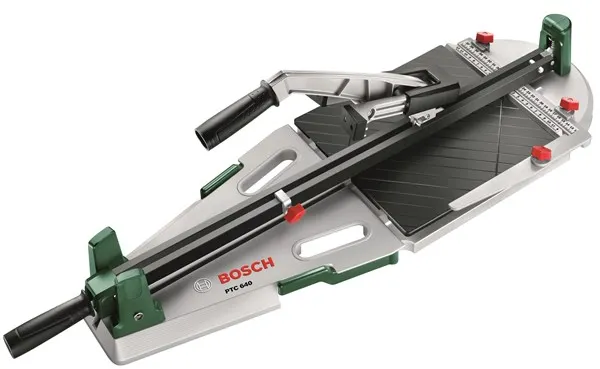

The Bosch PTC 640 is designed to make tile cutting simple and accurate. With a titanium-coated cutting wheel, the user can score and snap tiles in one step, saving time and ensuring a clean cut.
The tile cutter can handle tiles up to 640 mm in length and up to 12 mm in thickness. The stable construction and secure tile fixation contribute to precise results, even for diagonal cuts.
A 45° angle stop allows for diagonal cuts with high accuracy, while the extra-wide support provides better stability when working with larger tiles.
With its low weight and integrated carrying handles, the PTC 640 is easy to transport and store, making it suitable for both home projects and mobile tradespeople.
- Maximum cutting length: Up to 640 mm for long tiles.
- Titanium-coated cutting wheel: Provides durability and precise scoring.
- Secure fixation: Keeps the tile stable during work.
- 45° angle stop: Enables precise diagonal cuts.
- Low weight and carrying handles: Make transport and handling easy.
Pros and cons
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Pros and cons
Pros
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
Cons
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Pros
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
Cons
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Specifications
- Manufacturer: Bosch
- Model: 0603B04400
- EAN: 3165140743310
- Product type: Tile cutter
- Maximum cutting length: 640 mm
- Maximum tile thickness: 12 mm
- Tile size for diagonal cut: 45 x 45 cm
- Dimensions (D x L x H): 30 x 99 x 29 cm
- Weight: 9.1 kg
- Features: L-handle, 45° angle guide

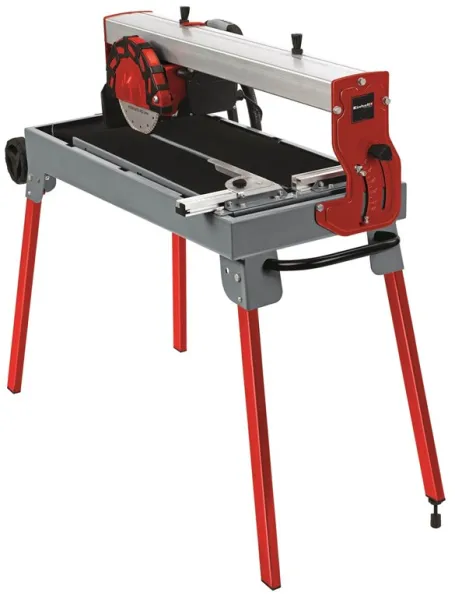

The Einhell TC-TC 800 is an electric tile cutting machine designed for precise cutting of ceramic tiles. It is powered by an 800 W motor and connects to a standard 230 V power supply, making it suitable for both hobby and home projects.
The machine features a robust stainless steel worktable with an angle scale up to 45°, allowing the user to perform both straight and angled cuts. The table is equipped with non-slip feet for stability during operation.
A parallel stop with scale helps guide the tiles precisely during cutting, while the angle scale can be adjusted from -45° to +45° for mitre cuts. The integrated water tank ensures effective cooling of the diamond cutting wheel, reducing dust and extending the blade's lifespan.
The machine comes with a diamond cutting disc and tools for replacing it. A carrying handle and cable winder make it easy to move and store after use.
- 800 W power: Provides sufficient power for precise cutting of ceramic tiles.
- Stainless steel table: Robust work surface with angle scale up to 45°.
- Water cooling: Integrated water tank keeps the cutting wheel cool and reduces dust.
- Adjustable angle cutting: Allows cuts from -45° to +45°.
- Compact and portable: Equipped with handle and cable winder for easy handling.
Pros and cons
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Pros and cons
Pros
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
Cons
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Pros
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
Cons
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Specifications
- Manufacturer: Einhell
- Model: 4301185
- Item number: 3139207
- EAN: 4006825624687
- Power supply: 220–240 V | 50 Hz
- Max. output (S2 | S2 time): 800 W | 10 min
- No-load speed: 2,950 rpm
- Max. cutting height at 45°: 14 mm
- Max. cutting height at 90°: 34 mm
- Diamond cutting disc: Ø180 × Ø25.4 mm
- Worktable size: 395 × 385 mm
- Blade tilt: 45°
- IP rating: IPx4
Product descriptions
The Norton Clipper TT 200 EM is a table saw designed for cutting tiles, ceramics, and smaller stone materials. The machine comes with a 200 mm diamond cutting blade and is built to deliver clean and precise cuts in hard materials.
The 800-watt motor provides stable power during operation, and the stepless mitre angle from 0 to 45 degrees allows for bevel cuts with high accuracy. The cutting depth is 45 mm at 90° and 14 mm at 45°, covering most common tile tasks.
The table measures 420 × 400 mm and provides a stable working surface, while the machine’s weight of 16.5 kg makes it easy to transport. It comes in a practical storage box along with the blade (model 12080-0404).
With an IP54 protection rating, the TT 200 EM is protected against dust and water splashes, making it suitable for use in workshops and on construction sites. The maximum blade diameter is 200 mm with a bore diameter of 25.4 mm, and the motor runs at 2990 revolutions per minute.
- Efficient motor: 800 W motor ensures stable cutting power for tiles and ceramics.
- Stepless mitre angle: Adjustable from 0° to 45° for precise bevel cuts.
- Compact and portable: Supplied in a storage box and weighs only 16.5 kg.
- Robust worktable: Table size of 420 × 400 mm provides good stability.
- Protected construction: IP54 rating against dust and water splashes.
Pros and cons
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Pros and cons
Pros
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
Cons
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Pros
- Powerful motor in a compact format
- Ability to make precise mitre cuts
- Easy to transport and store
- Suitable for both tiles and ceramics
- Supplied with diamond cutting blade
Cons
- Limited cutting depth at 45° cuts
- Not intended for very large stone materials
Specifications
- Model: TT 200 EM
- Power: 800 W
- Motor voltage: 230 V
- Speed: 2990 rpm
- Blade diameter (max): 200 mm
- Blade bore diameter: 25.4 mm
- Cutting depth at 90°: 45 mm
- Cutting depth at 45°: 14 mm
- Table length: 420 mm
- Table width: 400 mm
- Protection class: IP54
- Weight: 16.5 kg
- ETIM classification code: EC002244
- Included blade: 12080-0404
The Tile Cutter Machine Class 900S is designed for efficient and accurate cutting of tiles, ceramics, and other hard building materials. It is equipped with a powerful 1,000-watt motor powered by 230 volts and comes with a 200 mm diamond blade that ensures clean and precise cuts.
The machine has a maximum cutting length of up to 90 cm and a cutting depth of 4 cm, making it suitable for both large and small tiles. An integrated laser guide helps achieve precise cuts, while a smart spray system provides water cooling for the blade during operation.
The cutting head moves smoothly on ball bearings, providing even and controlled movement. The cutting angle can be adjusted from 0 to 45 degrees, and the cutting depth can be changed without tools, making the machine flexible to use.
The Class 900S is built to deliver stable results and high precision, whether used for professional tasks or larger home renovation projects.
- Cutting length up to 90 cm: Allows handling of large tiles and slabs.
- Cutting depth of 4 cm: Suitable for both thin and thicker materials.
- Laser guide: Helps with precise positioning and straight cuts.
- Water cooling: Smart spray system reduces heat build-up and dust.
- Adjustable cutting angle: From 0° to 45° without tools.
- Powerful motor: 1,000-watt motor with 230-volt power supply.
Pros and cons
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Pros and cons
Pros
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
Cons
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Pros
- Precise cutting with laser guide
- Efficient water cooling of the blade
- Adjustable cutting angle and depth without tools
- Powerful motor suitable for hard materials
- Long cutting length of up to 90 cm
Cons
- Relatively heavy and requires a stable workspace
- Requires access to a water connection for cooling
Specifications
- Model: Class 900S
- Motor power: 1,000 watts
- Voltage: 230 volts
- Blade diameter: 200 mm diamond blade
- Maximum cutting length: 90 cm
- Maximum cutting depth: 4 cm
- Cutting angle: 0–45° adjustable
- Cooling system: Water cooling via spray system
- Item number (SKU): 159302-159304
The Sigma Tile Cutter 2D4 is developed for the professional tiler who needs precise and repeatable cuts. The cutting is performed by pushing the handle forward, providing a controlled movement and a clean break in the tile.
The breaking mechanism is equipped with plastic protection, which reduces the risk of marks on the tile surface. The patented cutting guide can be adjusted from 0 to 45 degrees on both sides, making it possible to perform both straight and angled cuts with high accuracy.
With a cutting height of up to 20 mm and a maximum cutting length of 61 cm, the tool can handle most standard tiles. The diagonal capacity of 43 × 43 cm makes it suitable for diagonal tile installations where precision is crucial.
- Cutting length 61 cm: Allows cutting larger tiles in one pass.
- Adjustable cutting guide: Can be angled from 0–45° on both sides for flexible cutting.
- Breaking mechanism with plastic protection: Protects the tile surface from marks.
- Cutting height up to 20 mm: Suitable for both thin and thicker tiles.
- Diagonal capacity 43×43 cm: Enables precise diagonal cuts.
Pros and cons
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Pros and cons
Pros
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
Cons
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Pros
- Solid construction for professional use
- Allows both straight and angled cuts
- Plastic protection reduces the risk of tile damage
- High precision and user-friendly operation
Cons
- Manual operation requires physical strength and technique
- Limited to tiles with a maximum length of 61 cm
Specifications
- Manufacturer: Sigma
- Model: 2D4
- Cutting length: 61 cm
- Cutting height: 20 mm
- Diagonal capacity: 43 × 43 cm
- Angle range: 0–45° on both sides
- SKU: SV-163129
The SIGMA Tile Cutter 2C4 is a manual tile cutter designed to deliver precise cuts in ceramic tiles. It has a maximum cutting length of 46 cm, making it suitable for both small and medium-sized tiles.
The model is equipped with a push handle, which gives the user good control during cutting and ensures a clean break. The construction is typically made of solid materials that can withstand repeated use on construction sites and in workshops.
The tile cutter is designed to provide a combination of accuracy and ease of use, making it suitable for both professional tilers and private individuals who want a precise result for renovation tasks.
- Push handle: Provides controlled and precise cutting of tiles.
- Cutting length of 46 cm: Fits most standard tiles.
- Solid construction: Built for professional use and long durability.
- Manual operation: Requires no power and can be used anywhere.
Pros and cons
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Pros and cons
Pros
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
Cons
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Pros
- Precise cutting with push handle
- Suitable for both professional and private users
- Robust and durable construction
- Easy to transport and use without power
Cons
- Limited to tiles up to 46 cm in length
- Requires manual force and technique for best results
Specifications
- Manufacturer: SIGMA
- Model: 2C4
- Cutting length: 46 cm
- Operation type: Push handle
- Item number (SKU): SV-163128
The Bosch PTC 640 is designed to make tile cutting simple and accurate. With a titanium-coated cutting wheel, the user can score and snap tiles in one step, saving time and ensuring a clean cut.
The tile cutter can handle tiles up to 640 mm in length and up to 12 mm in thickness. The stable construction and secure tile fixation contribute to precise results, even for diagonal cuts.
A 45° angle stop allows for diagonal cuts with high accuracy, while the extra-wide support provides better stability when working with larger tiles.
With its low weight and integrated carrying handles, the PTC 640 is easy to transport and store, making it suitable for both home projects and mobile tradespeople.
- Maximum cutting length: Up to 640 mm for long tiles.
- Titanium-coated cutting wheel: Provides durability and precise scoring.
- Secure fixation: Keeps the tile stable during work.
- 45° angle stop: Enables precise diagonal cuts.
- Low weight and carrying handles: Make transport and handling easy.
Pros and cons
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Pros and cons
Pros
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
Cons
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Pros
- Easy and quick cutting in one step
- Durable titanium-coated cutting wheel
- Option for diagonal cuts with 45° angle stop
- Low weight and practical carrying handles
- Suitable for large tiles thanks to extra base width
Cons
- Manual operation requires physical effort with repeated use
- Not suitable for very thick or hard tiles over 12 mm
Specifications
- Manufacturer: Bosch
- Model: 0603B04400
- EAN: 3165140743310
- Product type: Tile cutter
- Maximum cutting length: 640 mm
- Maximum tile thickness: 12 mm
- Tile size for diagonal cut: 45 x 45 cm
- Dimensions (D x L x H): 30 x 99 x 29 cm
- Weight: 9.1 kg
- Features: L-handle, 45° angle guide
The Einhell TC-TC 800 is an electric tile cutting machine designed for precise cutting of ceramic tiles. It is powered by an 800 W motor and connects to a standard 230 V power supply, making it suitable for both hobby and home projects.
The machine features a robust stainless steel worktable with an angle scale up to 45°, allowing the user to perform both straight and angled cuts. The table is equipped with non-slip feet for stability during operation.
A parallel stop with scale helps guide the tiles precisely during cutting, while the angle scale can be adjusted from -45° to +45° for mitre cuts. The integrated water tank ensures effective cooling of the diamond cutting wheel, reducing dust and extending the blade's lifespan.
The machine comes with a diamond cutting disc and tools for replacing it. A carrying handle and cable winder make it easy to move and store after use.
- 800 W power: Provides sufficient power for precise cutting of ceramic tiles.
- Stainless steel table: Robust work surface with angle scale up to 45°.
- Water cooling: Integrated water tank keeps the cutting wheel cool and reduces dust.
- Adjustable angle cutting: Allows cuts from -45° to +45°.
- Compact and portable: Equipped with handle and cable winder for easy handling.
Pros and cons
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Pros and cons
Pros
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
Cons
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Pros
- Powerful 800 W motor for efficient cutting
- Water cooling for precise and clean cuts
- Adjustable angle scale for angled cuts
- Stable stainless steel worktable
- Easy to transport and store
Cons
- Limited cutting height may be a challenge with thicker tiles
- Requires access to water and cleaning after use
Specifications
- Manufacturer: Einhell
- Model: 4301185
- Item number: 3139207
- EAN: 4006825624687
- Power supply: 220–240 V | 50 Hz
- Max. output (S2 | S2 time): 800 W | 10 min
- No-load speed: 2,950 rpm
- Max. cutting height at 45°: 14 mm
- Max. cutting height at 90°: 34 mm
- Diamond cutting disc: Ø180 × Ø25.4 mm
- Worktable size: 395 × 385 mm
- Blade tilt: 45°
- IP rating: IPx4
Other products
The Carat TC-1800 is a tile plunge saw designed for both wet and dry cutting. It can be connected to water to reduce dust and cool the blade during wet cutting, or connected to a vacuum cleaner for efficient dust collection during dry cutting.
The machine comes with a guide rail, three 400 mm rails, a connecting piece and a locking clamp, allowing for precise and controlled cuts. The included transport case makes it easy to store and transport the equipment.
The TC-1800 is equipped with a CDTC diamond blade suitable for natural stone and concrete tiles. For tiles and clinker, the use of CDC or CSMP diamond blades is recommended. The machine has an adjustable cutting depth, so it can be adapted to different material thicknesses.
With a motor of 1.8 kW and a blade size of 180 mm, the saw can handle materials up to 5.5 cm thick. The compact weight of 6.7 kg makes it relatively easy to handle in relation to its performance.
- Wet and dry cutting: Can be used with water supply or vacuum cleaner depending on the task.
- Precision work: Comes with guide rail and accessories for accurate cuts.
- Powerful motor: 1.8 kW motor ensures efficient cutting in hard materials.
- Flexible use: Suitable for tiles, clinker, concrete and natural stone.
- Easy to transport: Supplied in a robust transport case.
Pros and cons
- Can be used for both wet and dry cutting
- Comes with guide rail and transport case
- Powerful 1.8 kW motor
- Suitable for several types of hard materials
- Option for dust extraction and water supply
- Requires correct setup to achieve precise cuts
- Additional diamond blades for different materials must be purchased separately
Pros and cons
Pros
- Can be used for both wet and dry cutting
- Comes with guide rail and transport case
- Powerful 1.8 kW motor
- Suitable for several types of hard materials
- Option for dust extraction and water supply
Cons
- Requires correct setup to achieve precise cuts
- Additional diamond blades for different materials must be purchased separately
Pros
- Can be used for both wet and dry cutting
- Comes with guide rail and transport case
- Powerful 1.8 kW motor
- Suitable for several types of hard materials
- Option for dust extraction and water supply
Cons
- Requires correct setup to achieve precise cuts
- Additional diamond blades for different materials must be purchased separately
Specifications
- Manufacturer: Carat
- Model: TC-1800
- Motor size: 1.8 kW
- Blade size: 180 x 22.2 mm
- Maximum material thickness: 5.5 cm
- Weight: 6.7 kg
- Item number (SKU): CA-03021251
- Supplied with: 3 x 400 mm rails, connecting piece, locking clamp, transport case and CDTC diamond blade

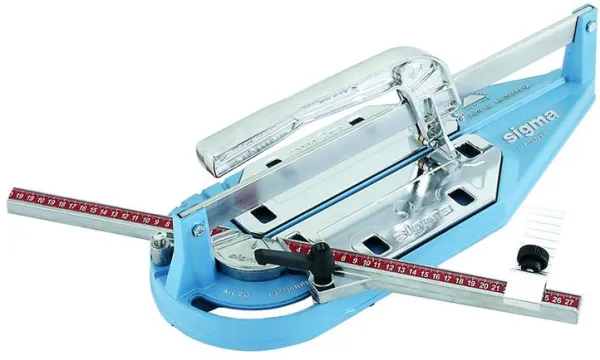

The Sigma 2G is a manual tile cutter developed for professionals and experienced DIY users who need precise cuts in ceramic tiles. With a cutting length of 37 cm, it is well suited for small and medium-sized tiles.
The construction is lightweight and compact, making it easy to transport and handle on the job site. It is equipped with a breaking device with plastic protection to avoid marks on the tiles during work.
The tile cutter is designed to deliver precise and clean cuts while being simple to operate. The robust build ensures stability and durability with repeated use.
The Sigma 2G is a practical choice for tradespeople who want a reliable tile cutter focused on accuracy and user-friendliness in a compact format.
- Cutting length 37 cm: Suitable for small and medium-sized tiles.
- Lightweight and compact design: Makes it easy to transport and use at different work sites.
- Precise cutting mechanism: Provides clean and accurate cuts in ceramic tiles.
- Breaking device with plastic protection: Prevents marks on the surface of the tiles.
- Robust construction: Ensures stability and long service life for professional use.
Pros and cons
- Compact and lightweight construction
- Precise and stable cutting mechanism
- Plastic-protected breaking device protects the tiles
- Suitable for professional use
- The 37 cm cutting length may be limiting for very large tiles
- Requires manual operation and experience for optimal results
Pros and cons
Pros
- Compact and lightweight construction
- Precise and stable cutting mechanism
- Plastic-protected breaking device protects the tiles
- Suitable for professional use
Cons
- The 37 cm cutting length may be limiting for very large tiles
- Requires manual operation and experience for optimal results
Pros
- Compact and lightweight construction
- Precise and stable cutting mechanism
- Plastic-protected breaking device protects the tiles
- Suitable for professional use
Cons
- The 37 cm cutting length may be limiting for very large tiles
- Requires manual operation and experience for optimal results
Specifications
- Product name: Tile Cutter Sigma 2G - 37 cm
- Type: Manual tile cutter
- Cutting length: 37 cm
- Application: Professional tiling
- Breaking device: With plastic protection
- SKU: SV-163110
The Einhell TE-TC 620 is a radial tile cutting machine designed for precise trimming of wall and floor tiles. It is equipped with a 900 W motor that drives a 200 mm diamond blade, allowing it to cut through hard materials with high accuracy.
The machine has a cutting length of up to 620 mm and can make cuts at angles from 0 to 45 degrees. The motor head can be continuously adjusted, and the motor guide is equipped with ball bearings for smooth movement during cutting.
An integrated cooling pump ensures efficient cooling of the diamond blade and reduces dust during operation. The steel plate water collector has a dirt trap with a washable filter, which protects the pump from larger particles.
The worktable has a non-slip rubber surface and stands on a foldable frame with a height-adjustable foot, providing stability and an ergonomic working position. Transport wheels and handles make the machine easy to move between work sites.
- Long cutting length: Up to 620 mm for large tiles.
- Powerful motor: 900 W motor with 200 mm diamond blade.
- Stepless angling: The motor head can be adjusted from 0–45°.
- Efficient cooling: Built-in pump and steel plate water collector.
- Stable construction: Foldable frame with height-adjustable foot and non-slip worktable.
Pros and cons
- Long cutting length of 62 cm
- Powerful 900 W motor for hard materials
- Stepless adjustment of cutting angle
- Efficient water cooling and dust-free operation
- Foldable frame with transport wheels for easy movement
- Relatively heavy construction may require two people for transport
- The product has been discontinued and may be difficult to find new
Pros and cons
Pros
- Long cutting length of 62 cm
- Powerful 900 W motor for hard materials
- Stepless adjustment of cutting angle
- Efficient water cooling and dust-free operation
- Foldable frame with transport wheels for easy movement
Cons
- Relatively heavy construction may require two people for transport
- The product has been discontinued and may be difficult to find new
Pros
- Long cutting length of 62 cm
- Powerful 900 W motor for hard materials
- Stepless adjustment of cutting angle
- Efficient water cooling and dust-free operation
- Foldable frame with transport wheels for easy movement
Cons
- Relatively heavy construction may require two people for transport
- The product has been discontinued and may be difficult to find new
Specifications
- Manufacturer: Einhell
- Model: TE-TC 620 U
- Item number: 2861771
- Model number: 4301295
- EAN: 4006825587067
- Power supply: 230 V | 50 Hz
- Max. power (S2 | S2 time): 900 W | 30 min
- Speed: 2,950 rpm
- Max. cutting height at 45°: 25 mm
- Max. cutting height at 90°: 30 mm
- Max. cutting length: 62 cm
- Diamond blade: Ø200×25.4 mm
- Cutting blade angling: 0–45°
- IP rating: 54
- Worktable size: 610×325 mm
Different types of tile cutters
Tile cutters come in many variants that differ in function, size, and price. Your choice depends on how often you use the tool and what materials you work with.
1. Manual tile cutters

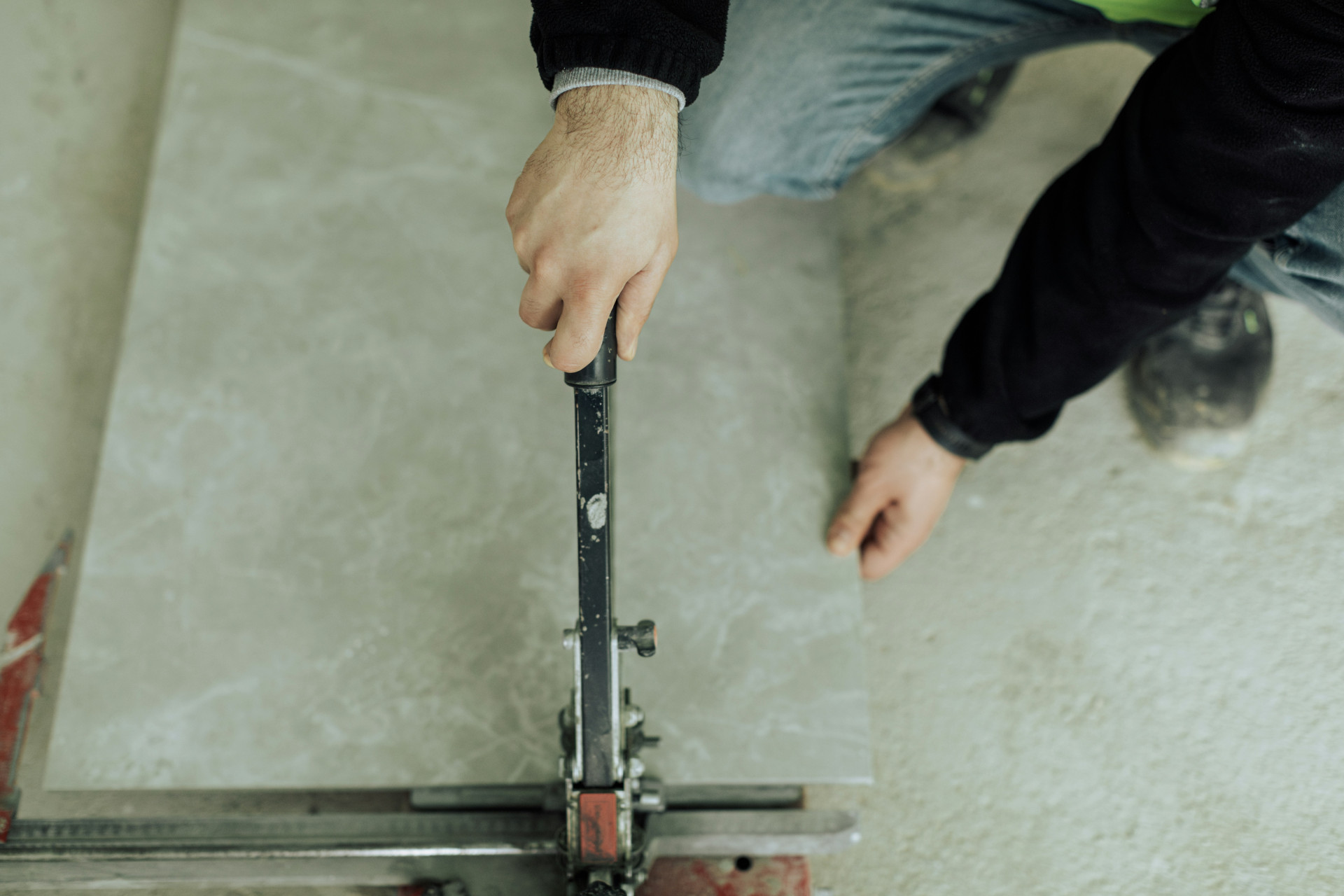

The most common type for DIY use. They work by scoring the tile with a cutting wheel and then snapping it over a pressure point. They are quiet, fast, and require no power – ideal for ceramic tiles and smaller projects.
2. Electric tile cutters
These machines use a rotating diamond blade, often with water cooling, to cut through hard materials such as porcelain and natural stone. They provide very precise cuts and can handle thicker tiles but require more space and maintenance.
3. Wet cutters
A subcategory of electric models where water is used to cool the blade and reduce dust. They are suitable for professional users working with large quantities of tiles or demanding materials.
4. Table models and portable models
Table models provide high stability and precision but take up more space. Portable models are lighter and easy to take to the construction site – a good choice for craftsmen working on different projects.
Different brands of tile cutters
The market for tile cutters includes many manufacturers, each with their own strengths and specialities.
Rubi
Rubi is one of the best-known brands in tile cutters and offers both manual and electric models. They are known for robust construction, precision, and a wide range of accessories.
Sigma
Sigma tile cutters are popular among professionals who want high accuracy and solid build quality. They often have innovative mechanisms that make it easier to cut hard tiles with minimal effort.
Montolit
Montolit combines Italian design with technical precision. Their tile cutters are known for ergonomics and durability, and they offer models for both professional and private users.
Einhell
Einhell produces affordable tile cutters aimed primarily at the DIY market. The electric models are easy to operate and well suited for smaller home projects.
Dewalt
Dewalt offers powerful electric tile cutters focusing on performance and durability. They are suitable for demanding tasks and professional environments where precision and reliability are crucial.
Frequently asked questions
Which tile cutter should I choose for my project?
It depends on the material and size of the tiles. For standard ceramic tiles, a manual model is often sufficient, while hard porcelain tiles require an electric wet cutter.
Can I use a tile cutter for natural stone?
Yes, but it requires an electric model with a diamond blade and water cooling. Manual tile cutters can rarely handle natural stone effectively.
How do I prevent the tiles from cracking during cutting?
Make sure to score the tile evenly and with constant pressure. Use a sharp blade and ensure that the tile lies stably on the cutting table before snapping it.
How much noise and dust does a tile cutter make?
Manual models are almost silent and dust-free, while electric models can be noisy and create dust. However, wet cutters significantly reduce dust with the help of water cooling.
How do I maintain my tile cutter?
Clean the tool after use, remove tile dust and residue, and check the cutting wheel or blade for wear. Replace worn parts in time to maintain precision.
Læs også:
